LED Module
W3N-SA12SU-CW10
Features
- 63 x 16 x 9.2mm. 12V 3-LED White Module. Non-polar type.
- Power Consumption : 1.2 W/1.1W
- LED provided by SamSung LED.
- Fabricated with a CAP TYPE Optical Lens.
- Viewing Angle : 170˚
- The Modules have a large angle of spread of the light and specially developed for use as backlighting in transparent signs.
Outline
Dimensions
- LED
- 28353LED
- Lens
- POINT / Optical Lens
- Emission color
- White

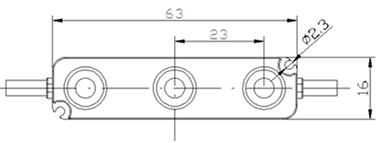

Front
Left
Bottom
Isometic
Specifications
Electro-Optical Characteristics
(Ta=25℃)
Parameter | Condition | Value (typ.) | Unit | Remark |
|---|---|---|---|---|
Power Dissipation | Vf = 12VDC | 1.2 | W | – |
Forward Current | 100 | mA | – | |
Color | White / 10000 | K | – | |
Luminous Flux | 129 | lm | – | |
Luminous Efficiency | 108 | lm/W | – | |
Viewing Angle | 170 | ˚ | – |
Mechanical Characteristics
(Ta=25℃)
Parameter | Value (typ.) | Remark |
|---|---|---|
LED Chip | SMD 2835 Type x 3EA | SamSung LED |
Connection | Wire to Wire (90mm) | Parallel Connection |
Double side Tape | PE Foam | – |
Cable | CCA 0.75 SQMM | – |
Case materials | ABS White | – |
Lens materials | ABS Clear | – |
Dimension | 63mm(W) x 16mm(L) x 9.2mm(H) | – |
Operation Temp. (°C) | -20 ~ 70 °C | – |
Remark
1. SMART LED maintains a tolerance of ± 10 % on intensity and power measurements.
2. The products are sensitive to static electricity and must be carefully taken when handling products.
3. Calculated performance values are for reference only.
4. All measurements were made under the standardized environment of SMART LED.
